To size your equipment
Injector it will feed, required oxygen flow, pressure at the injection point, run hours and power supply.
Injector it will feed, required oxygen flow, pressure at the injection point, run hours and power supply.
Performance Matrix

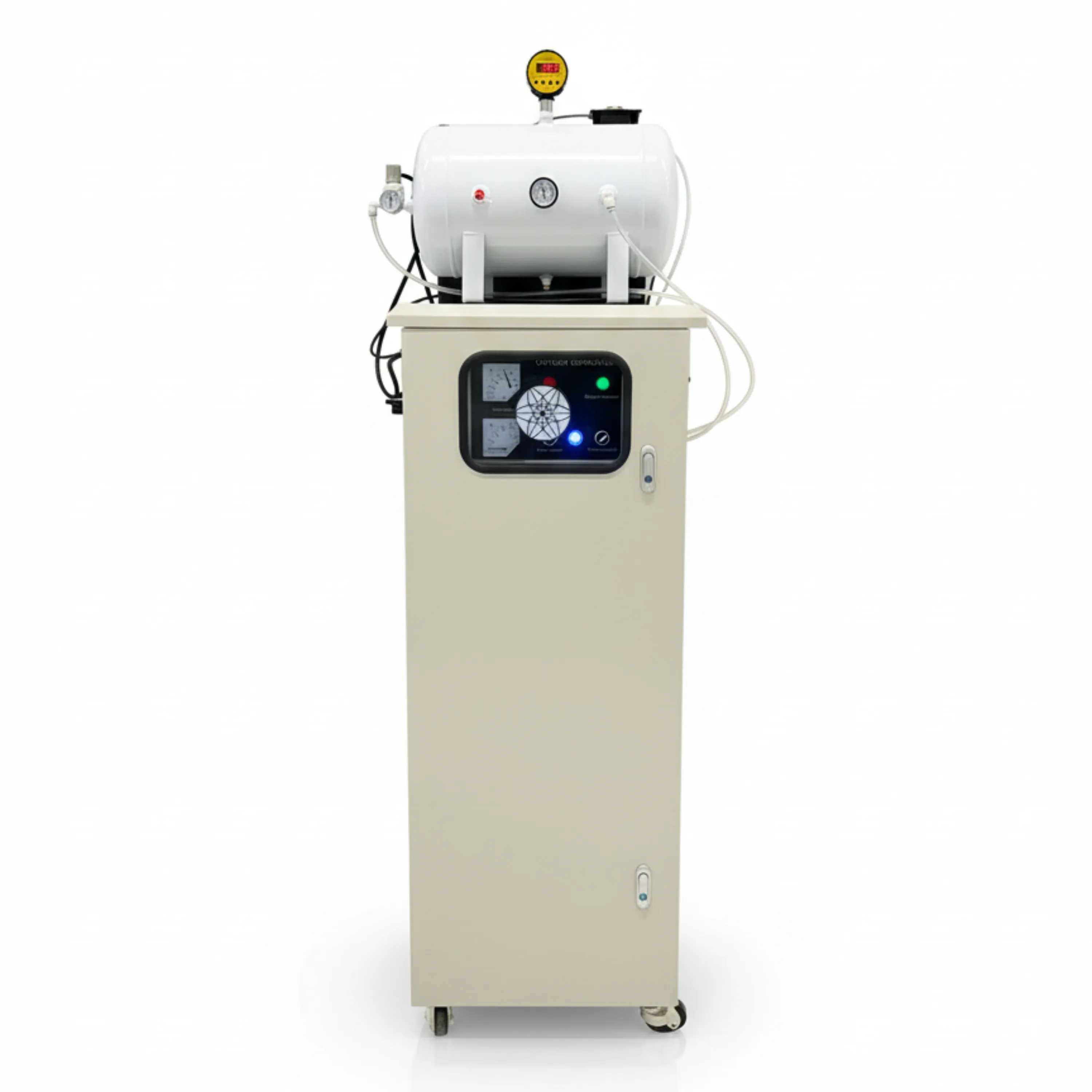

Industrial grade PSA oxygen generation for high-pressure injection.
| Model | Oxygen Flow | Output Pressure | Purity | Power (kW) |
|---|---|---|---|---|
| OG-10 | 10 LPM | 85 PSI (5.8 Bar) | 93% ± 3% | 0.6 kW |
| OG-20 | 20 LPM | 85 PSI (5.8 Bar) | 93% ± 3% | 1.1 kW |
| OG-40 | 40 LPM | 85 PSI (5.8 Bar) | 93% ± 3% | 2.2 kW |
| OG-80 | 80 LPM | 85 PSI (5.8 Bar) | 93% ± 3% | 4.5 kW |
Scroll horizontally to compare columns.
General Specifications
- Technology:
Pressure Swing Adsorption (PSA) - Outlet Pressure:
85 PSI (Nominal)
Matches Injection Requirement - Purity:
93% ± 3% Oxygen - Ambient Temp:
5°C - 40°C (41°F - 104°F) - Dew Point:
-40°C (-40°F) - Noise Level:
< 65 dBA
Integration Note: Designed to feed directly into Jet-Cav™ and Shear-Cav™ gas injection ports. Requires no external booster compressor.
Disclaimer: Specifications are for reference only. Power consumption and dimensions may vary by configuration.
