2026
PRODUCT CATALOG
Source-to-emitter precision
Advanced Hydrodynamic Cavitation & Nanobubble Technology. Rev 2026.1
kairospacetech.com
contact@kairospacetech.com
The engine of process intensification

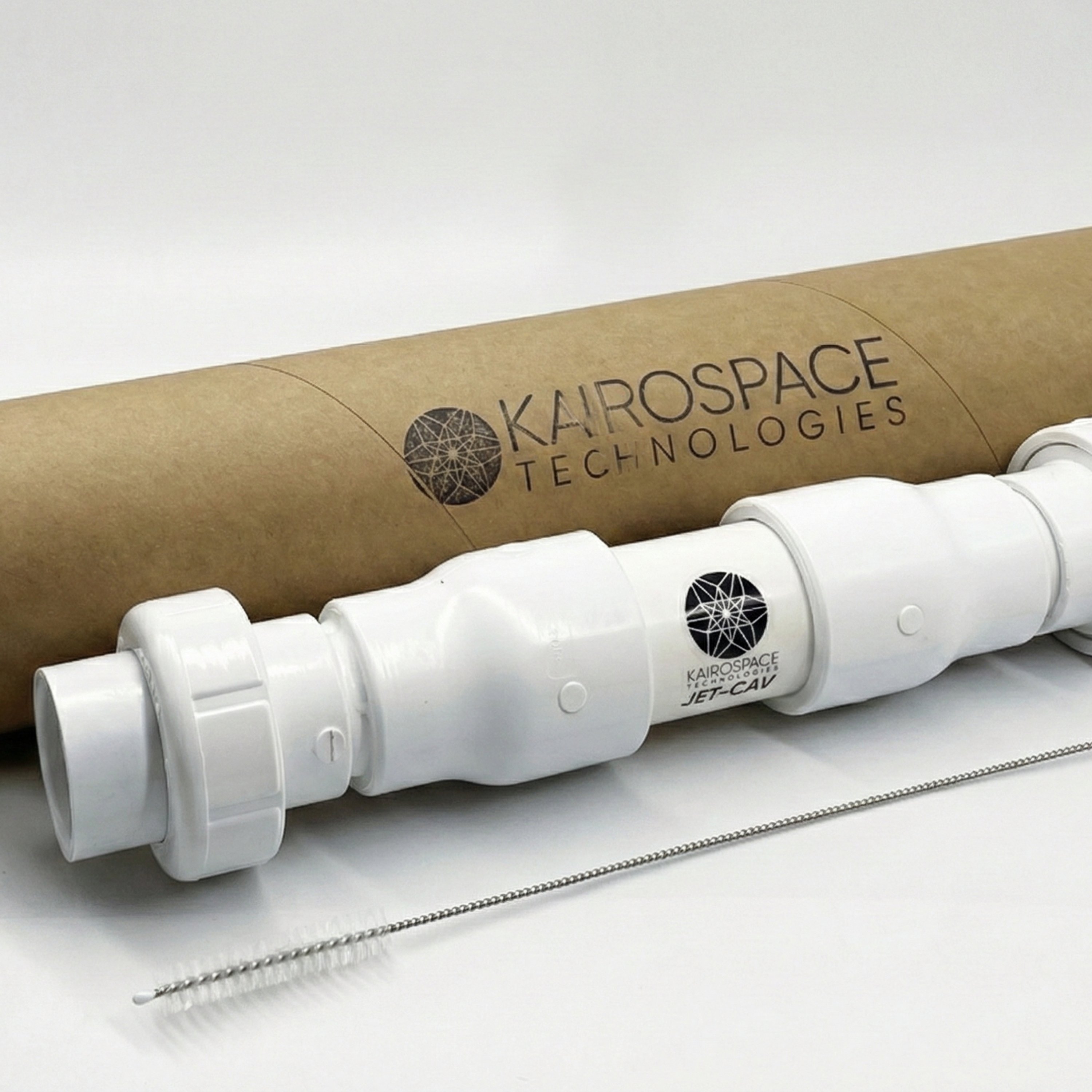

JET-CAV™ & SHEAR-CAV™ Technology
Our cavitators do not require added gases. They use the kinetic energy of the liquid flow itself to create local pressure collapse and intense shear at a microscopic level. Results depend on flow, dose and passes, so each application is tested on the customer's water.
Shear and collapsing bubbles act on sludge solids to speed up hydrolysis.
Acts on heavy molecular chains, without diluents.
Cavitation can form hydroxyl radicals (·OH) in the water, alongside local pressure collapse and shear.
Intense shear mixes fluids and forms fine emulsions in a single pass.
General specifications
- Installation: Post-pump / Recirculation Loop
- Pressure Drop: 3-5 PSI Differential
- Connection: Standard NPT / Flange
- Temperature: 1-60 °C
- Max Pressure: 100 PSI+ (See Matrix)
- Mixing Action: Hydrodynamic High-Shear
Performance matrix (flow in GPM)
| Size | 30 PSI | 50 PSI | 100 PSI |
|---|---|---|---|
| 1.0" | 9 | 12 | 15 |
| 1.5" | 22 | 29 | 39 |
| 2.0" | 37 | 49 | 66 |
| 3.0" | 83 | 107 | 146 |
| 4.0" | 146 | 188 | 257 |
| 6.0" | 333 | 430 | 586 |
| 8.0" | 581 | 750 | 1020 |
| 10.0" | 914 | 1180 | 1600 |
| 12.0" | 1300 | 1673 | 2279 |
Scroll horizontally to compare columns.
| Size | 30 PSI | 50 PSI | 100 PSI |
|---|---|---|---|
| 1.0" | 23 | 29 | 38 |
| 1.5" | 55 | 71 | 98 |
| 2.0" | 93 | 123 | 165 |
| 3.0" | 208 | 268 | 365 |
| 4.0" | 365 | 470 | 643 |
| 6.0" | 833 | 1075 | 1465 |
| 8.0" | 1453 | 1876 | 2653 |
| 10.0" | 2285 | 2950 | 4172 |
| 12.0" | 3250 | 4195 | 5933 |
Scroll horizontally to compare columns.

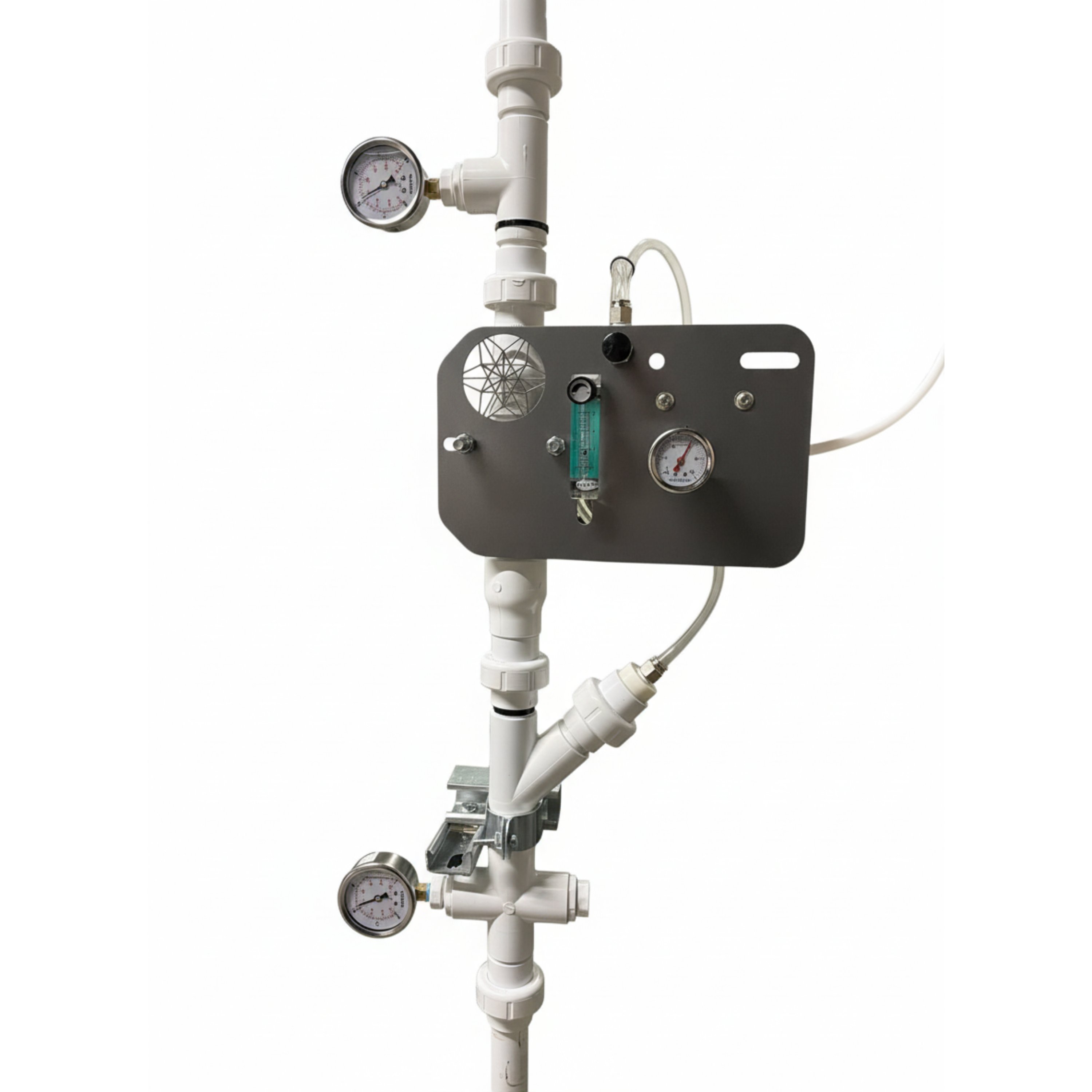

A step change in mass transfer
Our injectors combine the power of our cavitators with precise gas injection. Unlike traditional diffusers, our injectors shear the gas into billions of nanobubbles (<200 nm; size characterized by an independent laboratory using nanoparticle tracking analysis). Ultrafine bubbles persist in water far longer than coarse bubbles.
Less gas lost at the surface. Published research on nanobubble gas transfer (not our hardware) reports >85%, against ~15% for standard aerators.
Delivers O₂ to the root zone. Yield response depends on crop and site, so we pilot first.
Fine bubbles for oil and solids flotation. Coagulant need is tested per water.
Shear and nanobubbles act on films on pipes and membranes. Results depend on your water; we test it.
General specifications
- Body: PVC Sch 40/80
- Injector Core: Titanium
- Bulkhead: Stainless Steel
- Gaskets: Viton
- Max Water Pressure: 145 PSI (10 Bar)
- Max Gas Pressure: 80 PSI
- Temperature: 1-60 °C
- Compatible Gases: O2, N2, H2, CO2, O3
Model specifications
| Size | Connection | Water Flow (GPM) | Air Flow (LPM) |
|---|---|---|---|
| 0.75" | 0.75" NPT Union/Flange | 1 - 7 | 0.1 - 3 |
| 1.0" | 1" NPT Union/Flange | 9 - 15 | 0.1 - 3 |
| 1.5" | 1.5" NPT Union/Flange | 15 - 40 | 1 - 5 |
| 2.0" | 2" NPT Union/Flange | 37 - 66 | 2 - 8 |
| 3.0" | 3" NPT Union/Flange | 80 - 150 | 16 - 29 |
| 4.0" | 4" Flange | 150 - 260 | 29 - 50 |
| 6.0" | 6" Flange | 500 - 650 | 50 - 85 |
| 8.0" | 8" Flange | 800 - 1000 | 85 - 150 |
| 10.0" | 10" Flange | 1000 - 1300 | 150 - 250 |
| 12.0" | 12" Flange | 1200 - 1500 | 250 - 400 |
Scroll horizontally to compare columns.

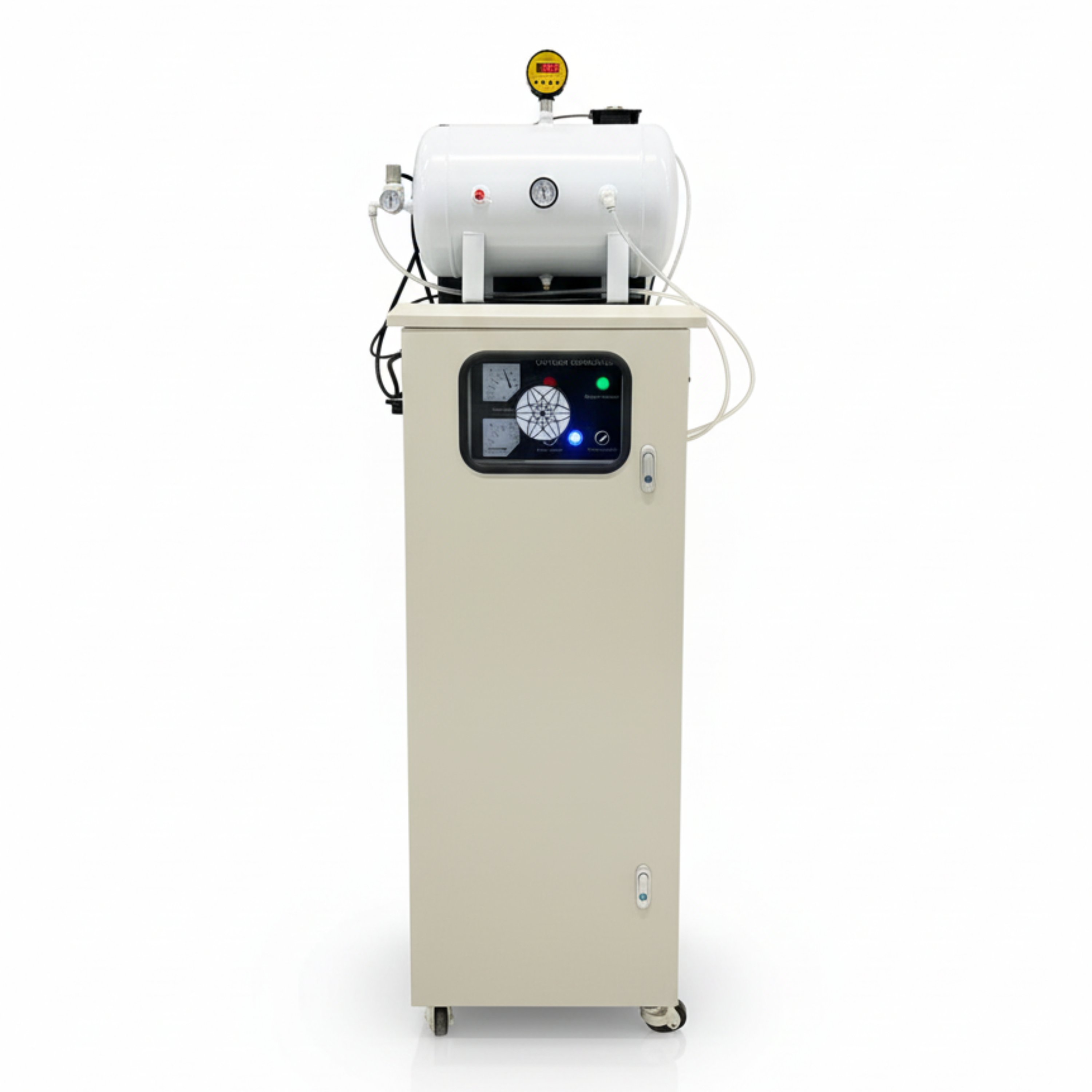

Oxygen generators (O2)
DO above 30 mg/L demonstrated with our injectors.
Sized on feed rate.
Supports aerobic bacteria that degrade pollutants.
Reactive oxygen species.
When ambient air cannot carry enough oxygen, our generators concentrate it to feed Kairospace injectors directly. Industrial grade PSA ensures consistent 93% ± 3% purity.
| Model | Flow | Power | Output |
|---|---|---|---|
| OG-10 | 10 LPM | 0.7 kW | 85 PSI |
| OG-20 | 20 LPM | 1.4 kW | 85 PSI |
| OG-30 | 30 LPM | 2.1 kW | 85 PSI |
| OG-40 | 40 LPM | 2.8 kW | 85 PSI |
| OG-50 | 50 LPM | 3.5 kW | 85 PSI |
| OG-60 | 60 LPM | 4.2 kW | 85 PSI |
| OG-80 | 80 LPM | 5.6 kW | 85 PSI |
| OG-100 | 100 LPM | 7.0 kW | 85 PSI |
Scroll horizontally to compare columns.

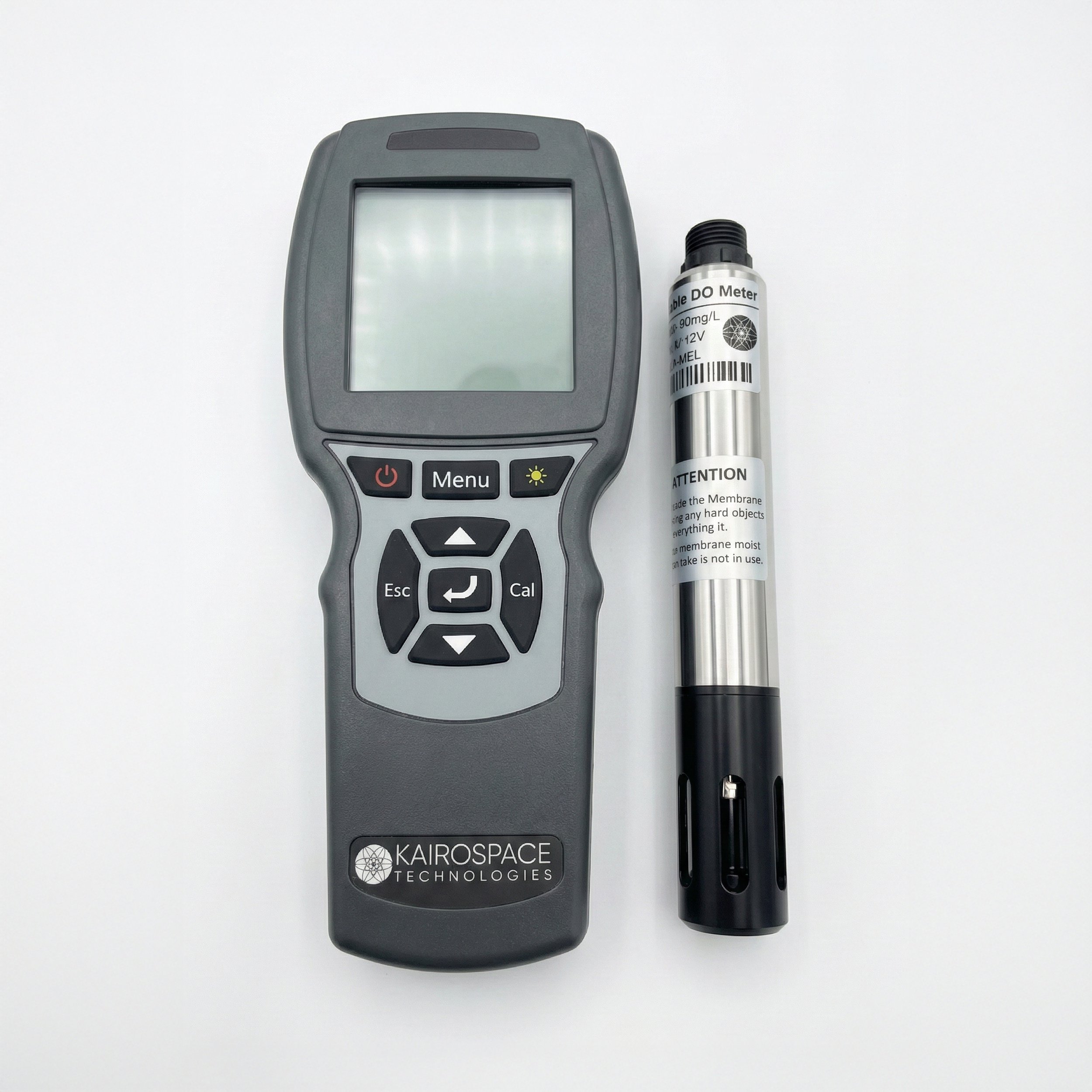

KST-HHM-ODO meter
Portable Optical Dissolved Oxygen Meter. Features fluorescence quenching technology for drift-resistant measurement with no permeable membrane or electrolyte.
- Range: 0-50 mg/L (0-500% Sat)
- Accuracy: ±1% (0-20 mg/L)
- Features: Auto Temp/Pressure compensation.
- Data: RS-485 Modbus RTU Output.
www.kairospacetech.com
contact@kairospacetech.com
The images, specifications, and performance metrics in this brochure are provided for informational purposes only and are subject to change without notice. They are approximate and illustrative, and may vary due to design modifications or manufacturing tolerances. Kairospace Technologies makes no warranties, express or implied, regarding the accuracy or completeness of this information and accepts no liability for any damages arising from its use. Prospective customers should verify details with an authorized representative prior to purchase. This brochure does not constitute a binding offer or contract.
